FLUX v1 — ESP32 Learning Board

Describe it. Learn it
Run on real hardware.

New to electronics? Type your idea in plain English. FLUX turns it into working ESP32 code that runs the first time with a learning session, no mess, no wiring. Build and learn something real in the fastest way.

Try the Prompt Builder Open FLUX Console See 9 ready gadgets

₹1,999 Complete kit · Ships from Ahmedabad

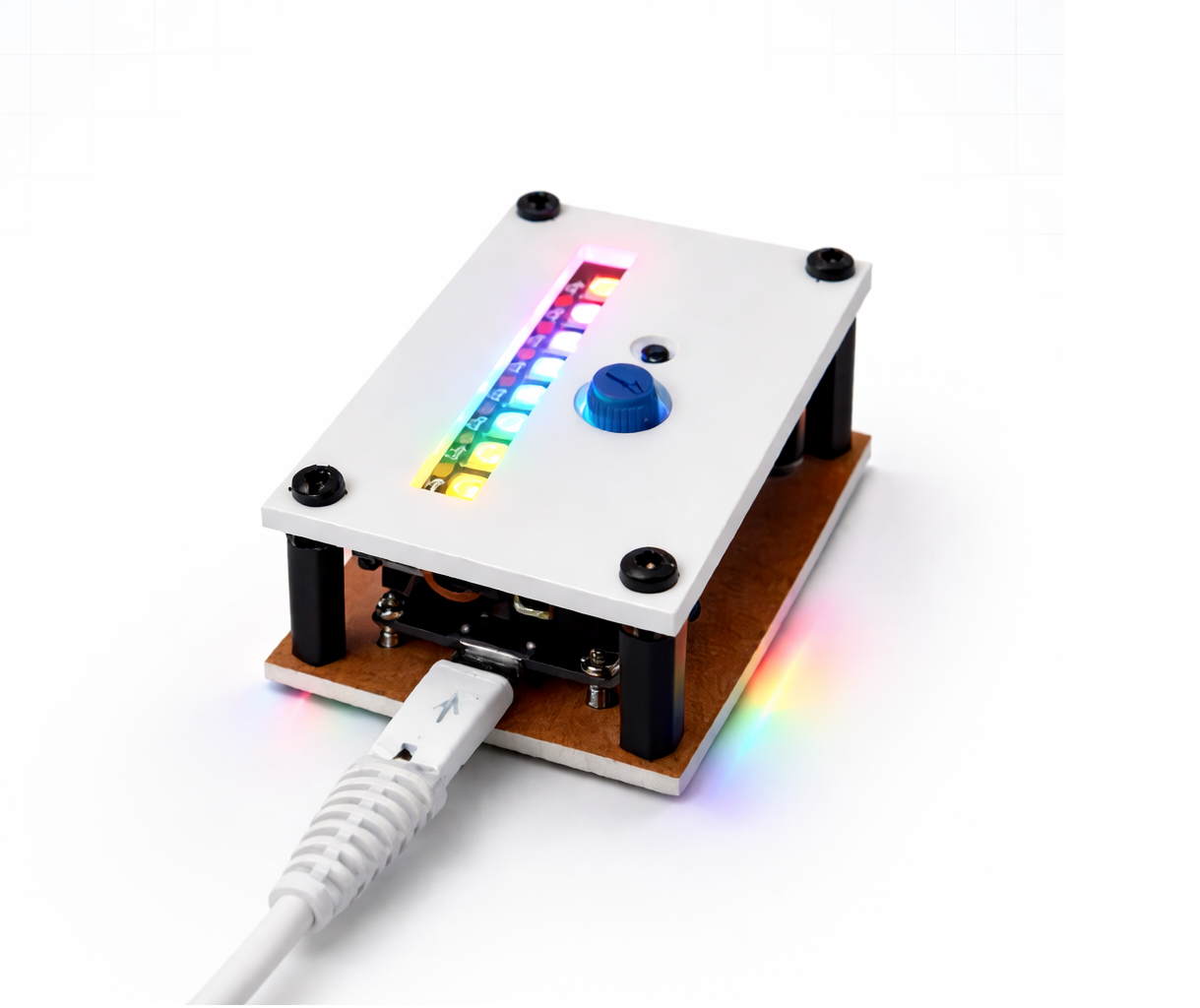

FLUX v1 board with rainbow LEDs glowing in white acrylic enclosure

See What You'd Build

Type an idea.
Get the full lesson.

FLUX wraps your idea with its exact pin map — paste the result into any AI and get back code, experiments, theory and fixes.
The board is what makes it real.

Describe

Write your idea in plain English. No wiring diagrams needed.

Build Your Guide

We package your idea with FLUX pin definitions and hardware rules.

Learn & Upload

Get commented code, experiments, and fixes. Test on FLUX.

Complete Arduino sketch

Simple concept explanation

Things to try next

Common beginner mistakes

You will need Arduino IDE with any libraries mentioned in the code.

Your FLUX Idea

After preparing, paste it into ChatGPT, Gemini, Claude, or Copilot. Use the answer to understand the idea, then test the sketch in Arduino IDE.

What Gets Copied?

9 Ready Gadgets

Working in 60 seconds.
Then make your own.

Flash any one from your browser — no code, no setup. These are where you start, not where you stop.

Open FLUX Console →

◐

Color Mixer

Mix RGB values using the potentiometer to create custom colors. See how red, green, and blue combine.

Ambient Lighting

◎

Auto Dim Lamp

Automatically adjusts LED brightness based on ambient room light. Brighter when dark, softer in light.

Smart Home

↯

Clap Lamp

Clap your hands — the light reacts. Adjust sensitivity with the potentiometer knob.

Smart Home

≋

Noise Alarm

Visualizes ambient noise level using the LED strip as a real-time gauge. See sound become light.

Audio Gear

◑

Light / Dark Alarm

Cover the sensor — the buzzer screams and LEDs flash like a police strobe. Simple security demo.

Security

∿

Rainbow Vibe

Smooth rainbow animation cycling across all LEDs. Pure ambient desk light with speed modes.

Ambient Lighting

⊙

Countdown Timer

Set a visual countdown with the knob. LEDs count down, buzzer alerts when done. Study or kitchen timer.

Utilities

◌

Smart Sleep Lamp

Warm light that gradually fades out after quiet time. Helps you drift off, then turns itself off.

Night Light

≈

VU Meter

Dynamic audio visualization — LEDs dance to sound from the onboard microphone. Music-reactive.

Audio Gear

Browser-based flashing. Chrome or Edge, no app install needed.

Fully editable. All Arduino source code available to modify.

No cloud, no account. Firmware flashes locally over USB.

Why FLUX

Code that can't be wired wrong.

Any AI can write ESP32 code. On a breadboard, one loose wire and nothing happens — so you quit. FLUX routes every pin on the PCB, and the AI already knows the map. The first upload runs. That is when it sticks.

Flash

Pick a ready gadget from the browser. It works instantly — proof the board is good before you write anything.

Type

Describe your own idea. FLUX wraps it with the locked pin map and hardware rules for any AI to follow.

Run

Upload the sketch it writes. It runs on the first try, because the wiring is fixed and the pins can't be wrong.

Not ten fixed projects in a box. Any project you can describe — running on the first try. That is the difference between a kit you finish once and a board you keep building on.

Buy FLUX v1

One complete kit. Ready to learn.

Everything you need to start flashing, observing, and building — shipped in one box.

FLUX v1 Complete Kit

₹1,999

One-time · No subscription · Free firmware updates

The full learn-by-doing hardware kit with browser flashing, all 9 functions, firmware updates, and direct builder support via WhatsApp.

All 9 hands-on functions unlocked from day one
Browser flash tool — no app install needed
Free firmware updates as new modes ship
10-day direct WhatsApp builder support
Detachable ESP32 for your own projects

Demo / Order on WhatsApp

What's in the box

01

FLUX HAT (PCB + acrylic enclosure)

Custom FR4 board with LDR, mic, pot, buzzer, LEDs, and button — all pre-wired.
02

ESP32 WROOM-32

38-pin dev board. Pre-flashed and detachable for your own projects.
03

Micro-USB data cable

Plug-and-flash. No cable hunting.
04

Acrylic standoffs + screws

4-point mounting. Solid, clean, no rattling.
05

Quick-start card

One URL. One QR code. Get flashing in under 60 seconds.
06

On-board components

LDR · INMP441 mic · 10kΩ pot · tactile button · passive buzzer · 7× WS2812B LEDs

Want to see it in action before ordering? Talk to the Builder →

One board. Any idea you can type.

Flash a ready gadget in a minute. Then describe your own and watch it run — first try.

₹1,999

Complete kit · Free firmware updates · 10-day WhatsApp builder support

Demo / Order on WhatsApp Open FLUX Console

Browser flashing — no IDE needed Chrome or Edge on any OS Direct from the builder, Ahmedabad

FAQ

Common questions

Yes. The HAT detaches from the included ESP32 via standard female headers. You can plug the HAT into any standard 38-pin ESP32 dev board for your own projects. Nothing is locked to Logic Studio hardware.

With FLUX v1, you get 10 days of direct WhatsApp access to the engineer who designed FLUX. This is for help configuring the 9 functions, troubleshooting hardware issues, or getting guidance on your own custom firmware written for the FLUX board.

Yes, the Flash Console works on Chrome or Edge on Windows, Mac, or Linux. Just plug in via USB. If your PC doesn't detect the COM port, install the standard CP210x Driver.

A bare ESP32 requires breadboards, loose jumper wires, separate sensors, and hunting for libraries before you can even test if it works. FLUX is a polished, integrated hardware tool. You get an enclosure, working firmware out of the box, and a reliable testbed for your embedded projects.

No. The flash tool runs entirely in your browser via Web Serial API. No cloud connection, no account required, no telemetry. Firmware flashes locally over USB directly from your machine.
